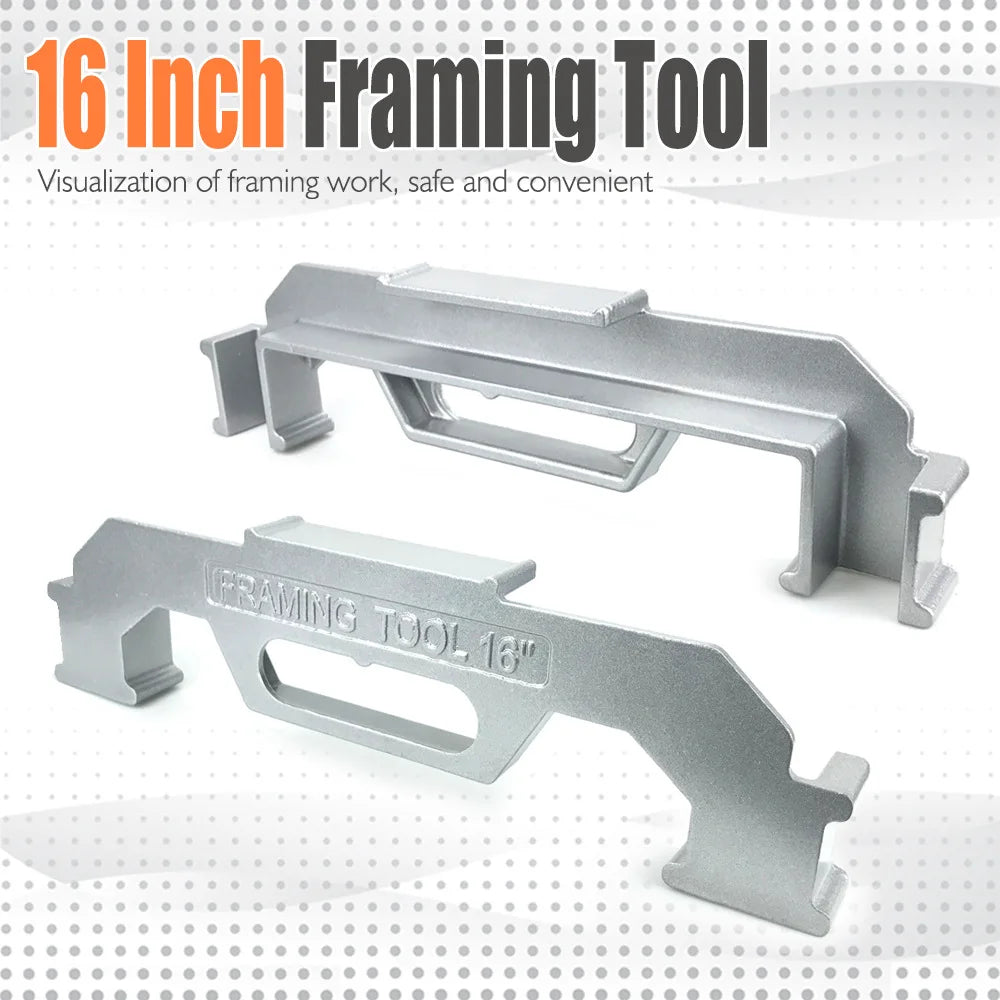

Framing Stud Layout Tool & Column Frame Fixture

Specifications

Material: Premium Heavy-Duty Aluminum Alloy

Dimensions: 68 × 15 × 3.5 cm (approx. 26.8 × 5.9 × 1.4 in)

Available Models & Colors:

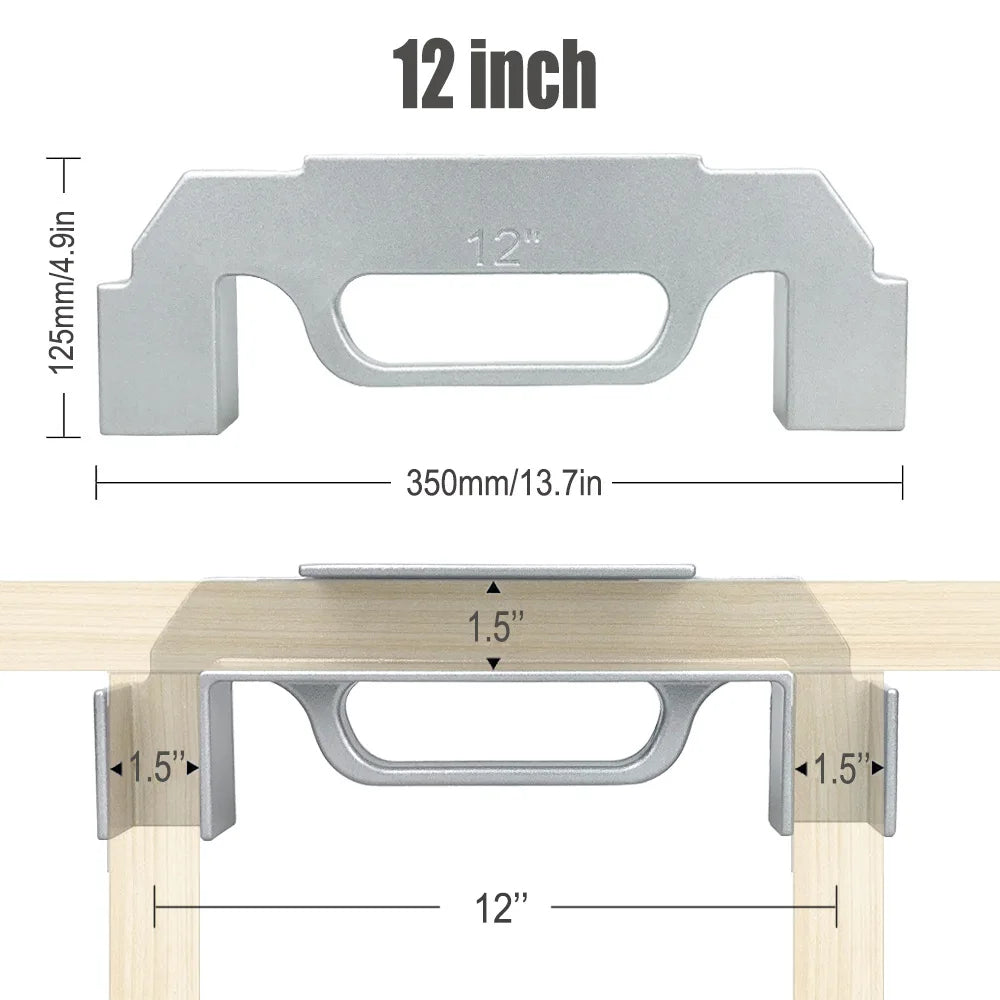

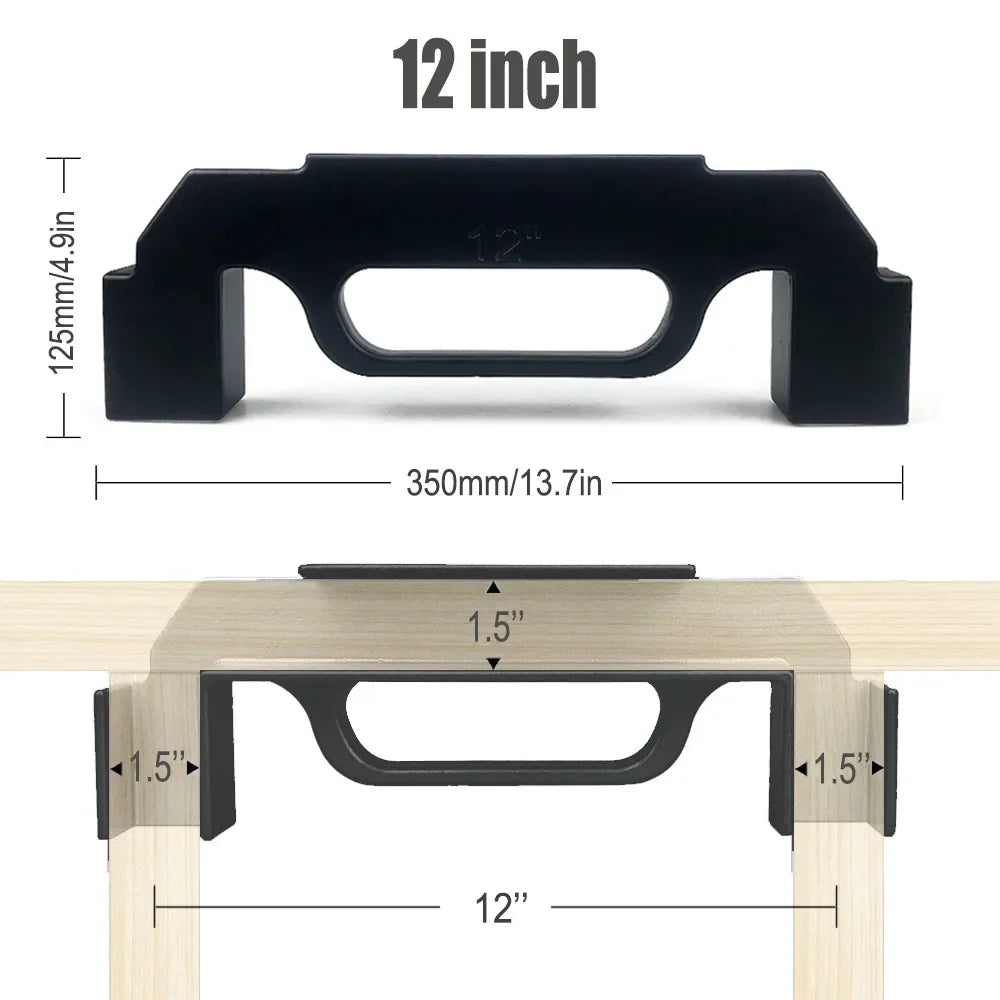

• 12 inch (Silver / Black)

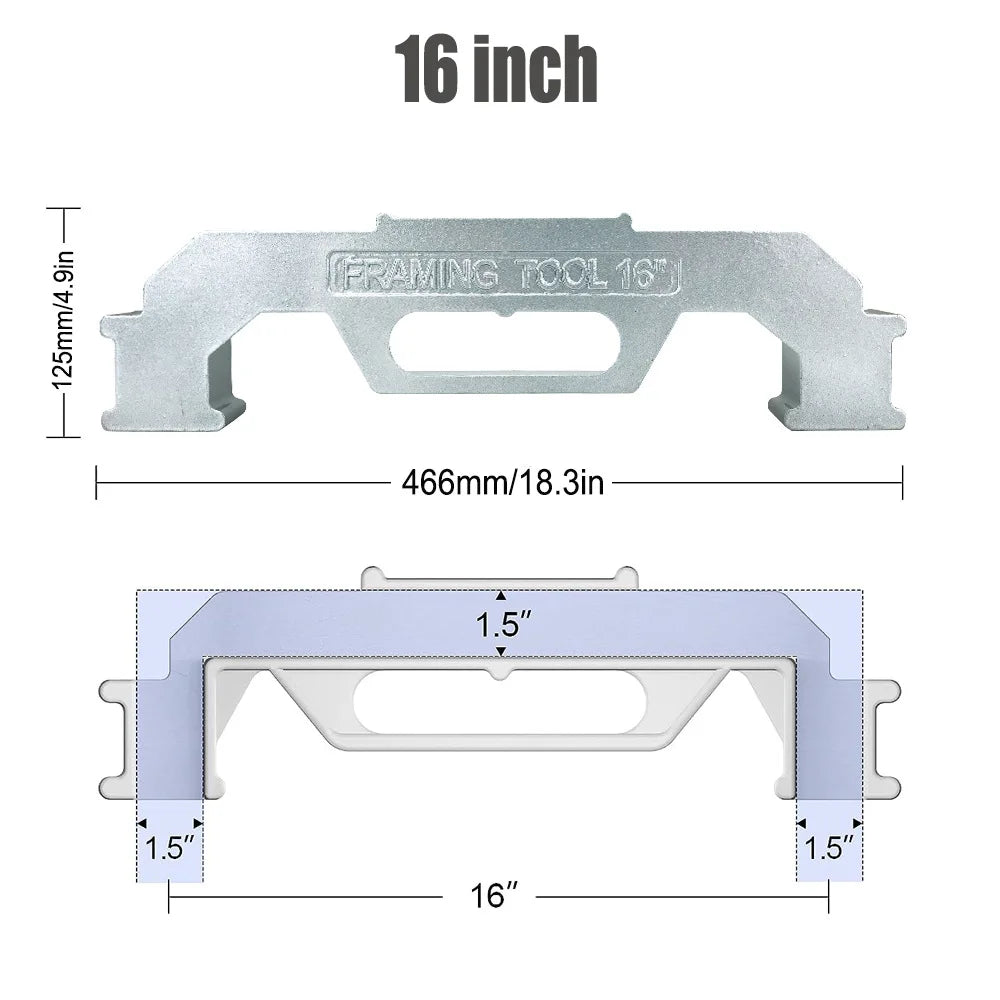

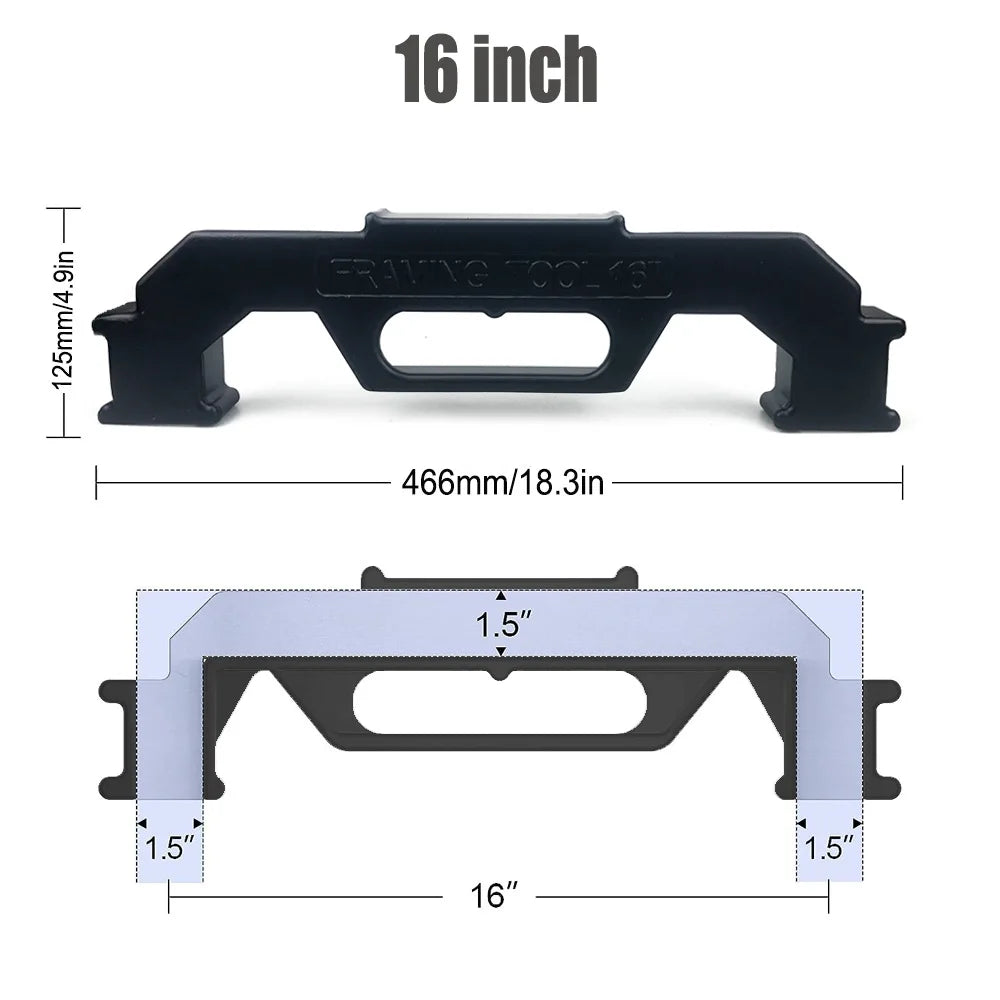

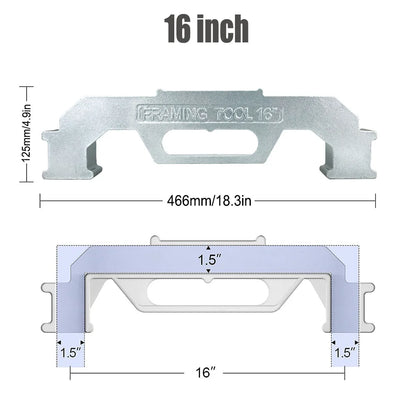

• 16 inch (Black)

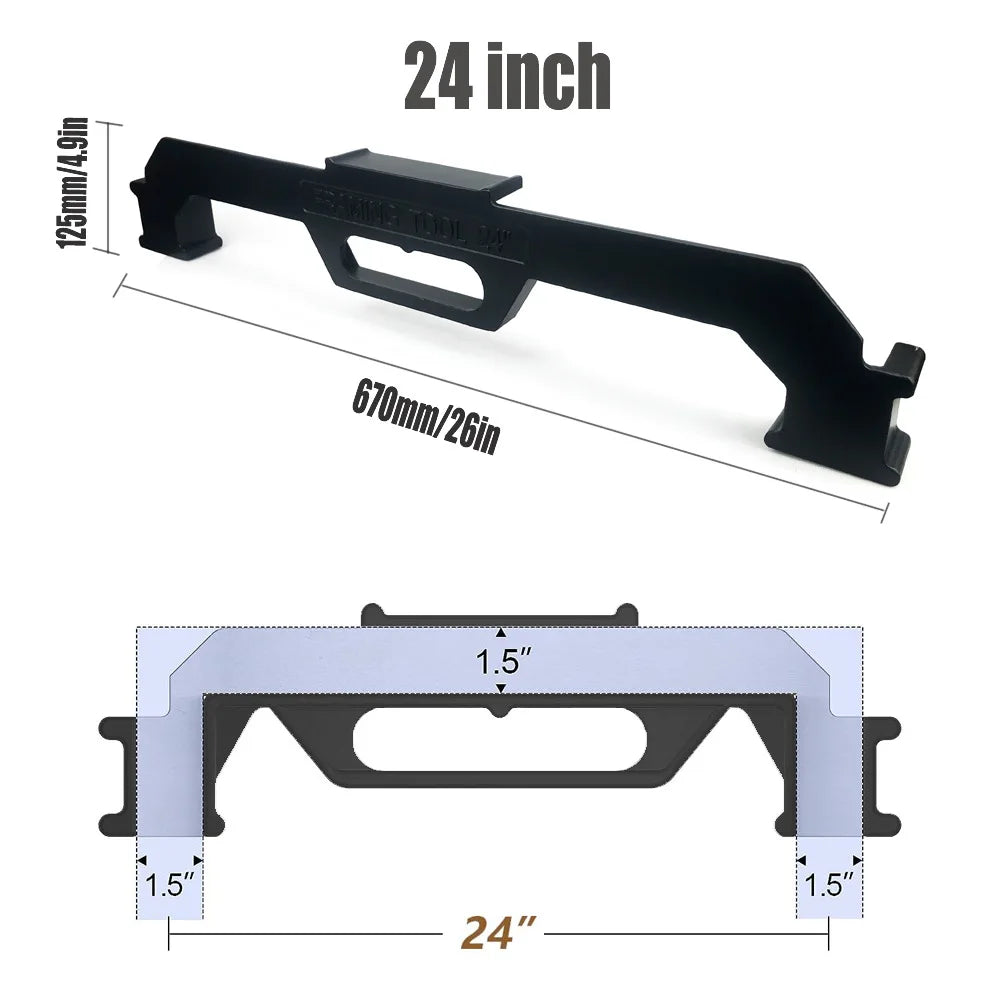

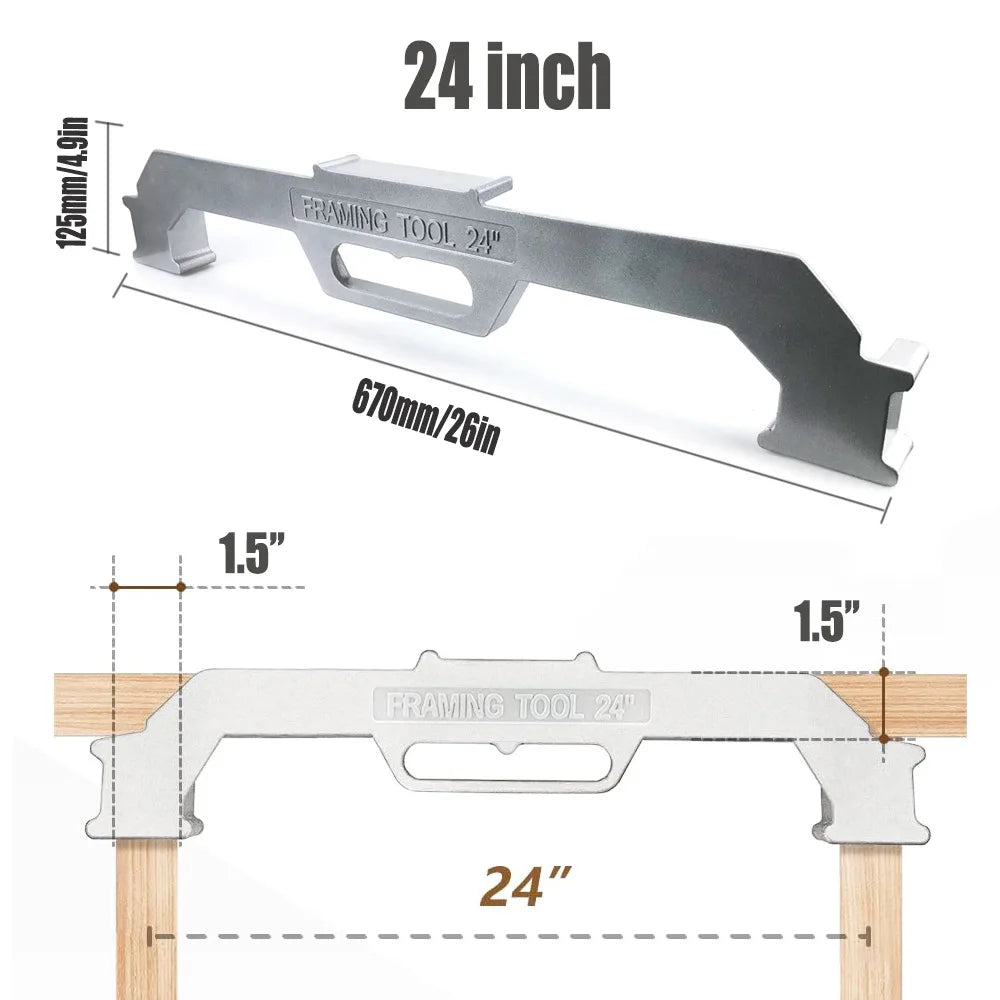

• 24 inch (Silver / Black)

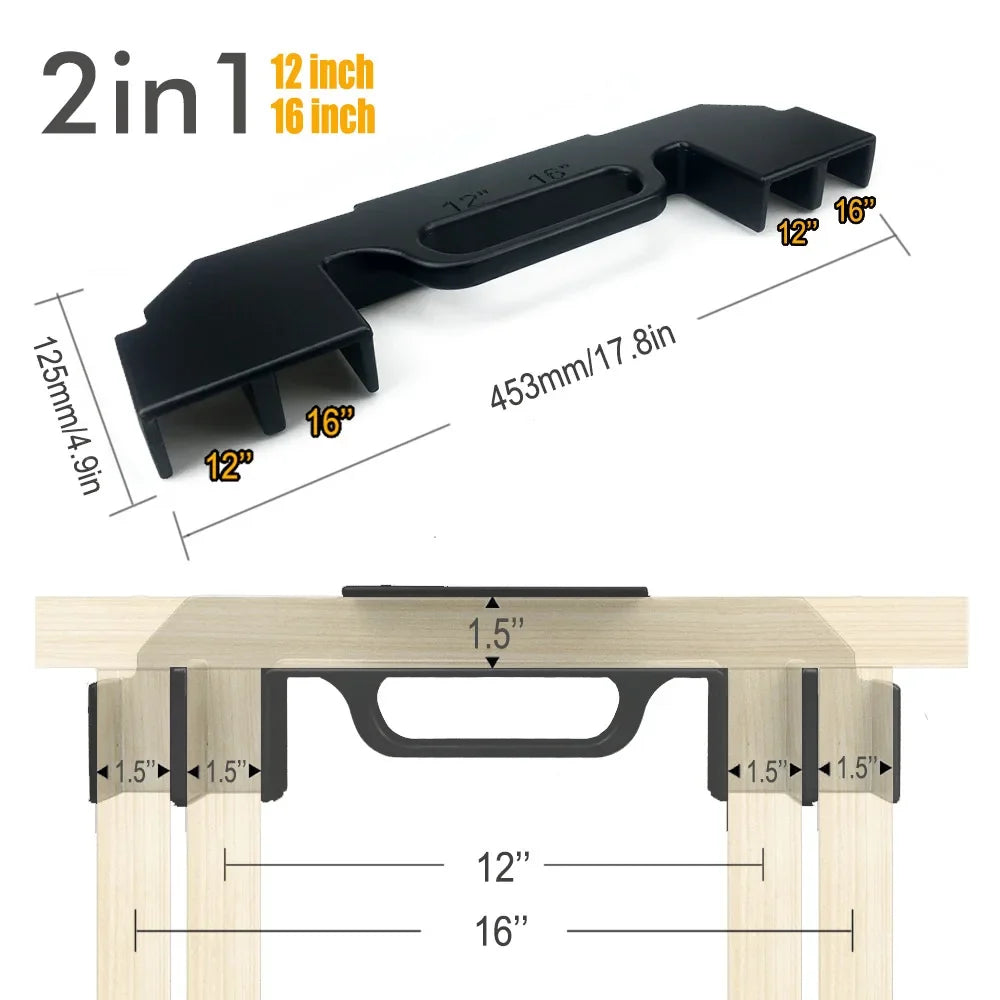

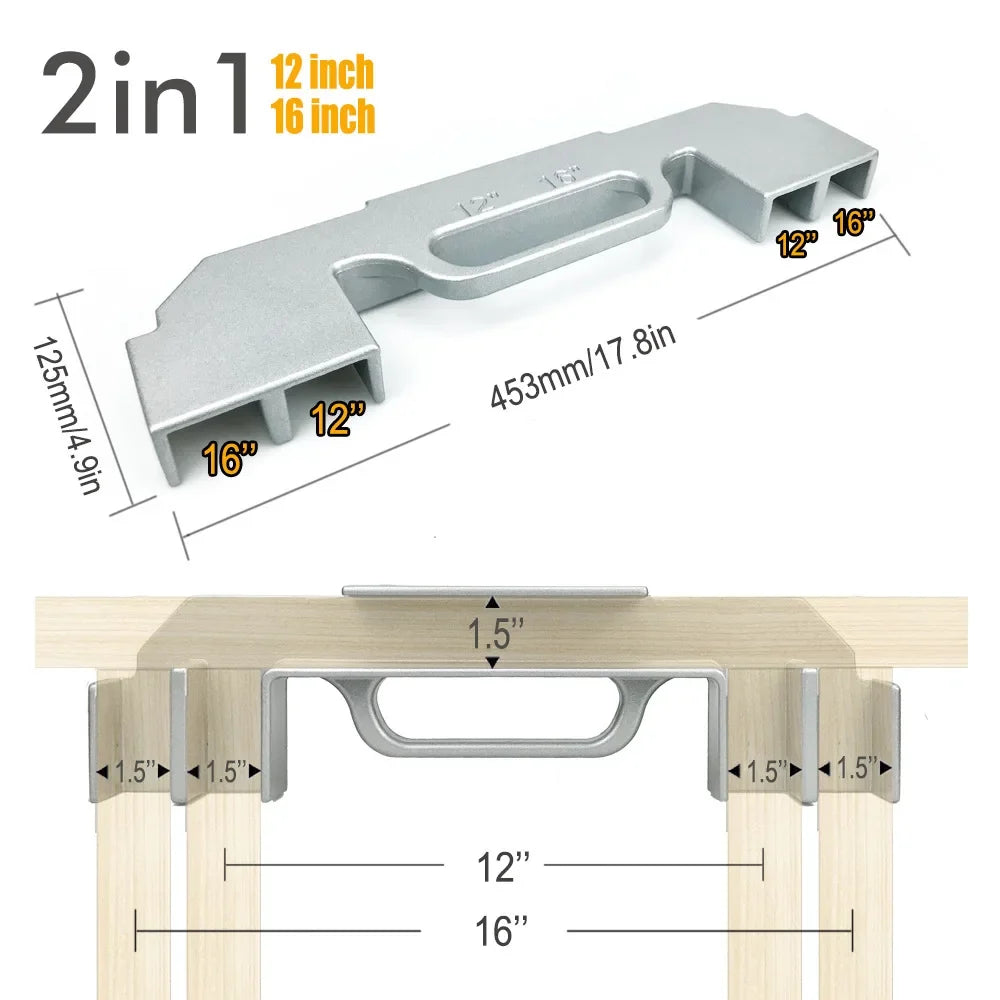

• 12 / 14 / 16 inch Combination Set (Silver / Black)

  Fixture Type: Framework & Stud Layout Fixture

  DIY & Trade Supplies: Woodworking / Construction / Framing

  High-Concerned Chemical: None

Features

Precision-engineered aluminum alloy construction provides lightweight durability, corrosion resistance, and long-term dimensional stability.

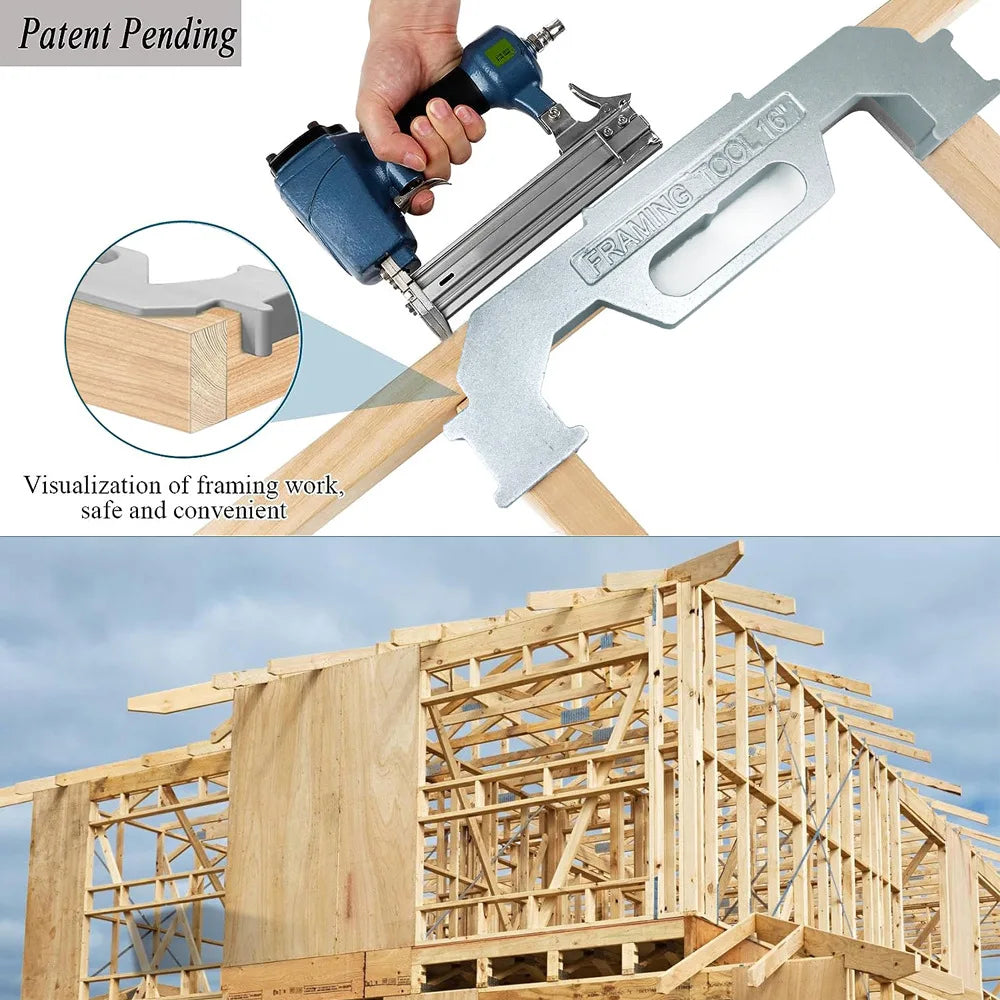

Simplifies stud wall layout by securing lumber at exact center-to-center spacing, eliminating repetitive manual measurements and human error.

Multi-functional clamp/fixture design holds framing columns and panels firmly in place for precise nailing and screwing during wall assembly.

Heavy-duty structural profile withstands rugged job site conditions, drop impacts, and daily construction use.

Compatible with standard dimensional lumber sizes, making it an essential tool for rapid wall framing, deck building, and panel construction.

Perfect For

Wall Stud Alignment & Layout • Woodworking Panel Assembly • Column & Beam Framing • Deck & Subfloor Construction • DIY Workshop & Jobsite Framing

Package Includes

1 × Aluminum Framing Layout Tool (Select size and color option upon ordering)

Notes

Verify your local building code stud spacing requirements (e.g., 12", 16", or 24" on-center) to select the correct tool model option. Ensure lumber is firmly seated inside the fixture slots before securing fasteners.
